Tumbling screen



DESCRIPTION

Shaking circular screens are characterised by their TUMBLING motion.
Thanks to their manufacturing technology and mechanics, they are widely used when, due to the nature of the products, vibratory movements would cause operational problems.



EFJ tumbling screens are typically used to sieve extremely fine and/or lightweight products (food flour, micronised materials, mineral powders, plastic powders).
Should we use a typical vibrating screen, we would notice the product would rebound and tend to remain suspended, hardly coming into contact with the sieving mesh; this would result in the inefficient separation of the different particle sizes and anyway in extremely low hourly rates.



With tumbling the product, instead of rebounding, slides spirally onto the sieving mesh, thus increasing the possibility that it passes through the mesh; this results in an excellent degree of separation and in extremely high hourly rates.

In simple words, the movement generated by EFJ screens is similar to that of manual sieving.

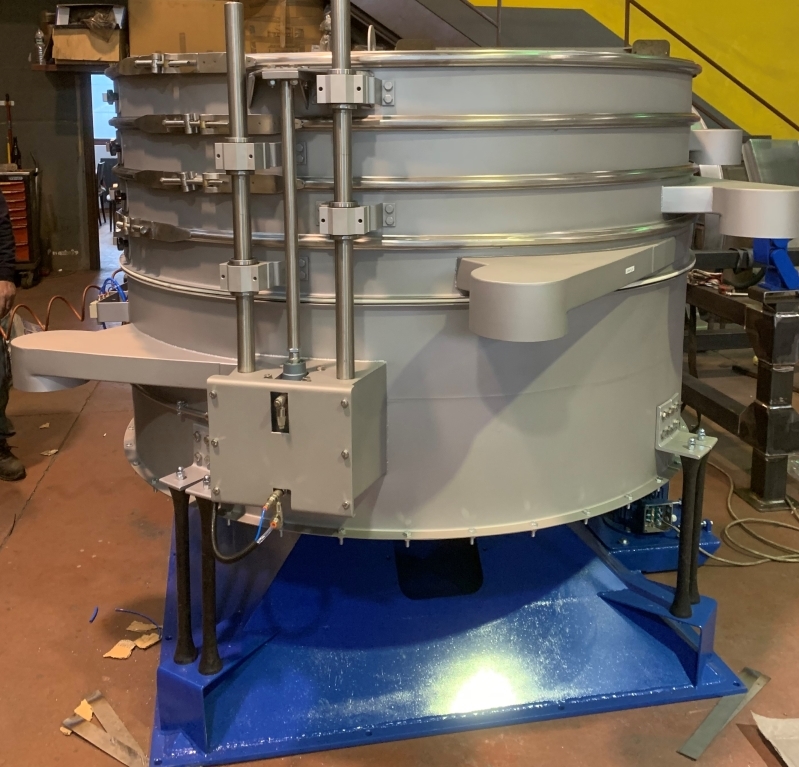

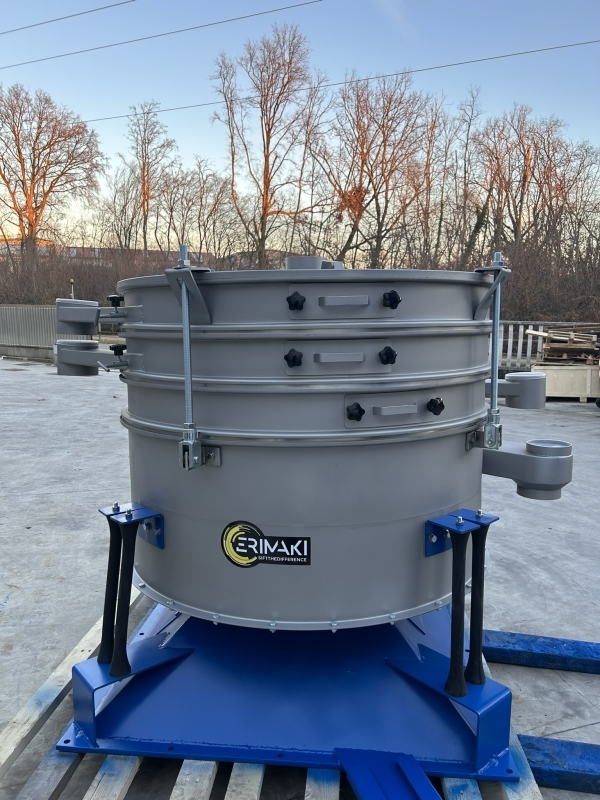

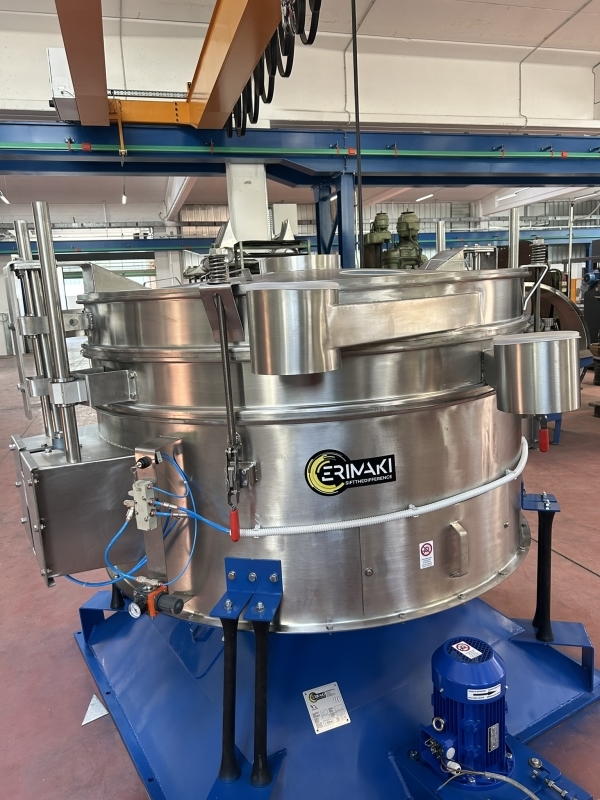

The EFJ screens consist of a carbon steel pyramidal base, topped by the screening unit, made of carbon steel or stainless steel, including one to four screening surfaces.

All machines are supplied complete with cover.

If needed you may install "ball" or "kleener" mesh cleaning systems.



Dimensions

Ø 600

Ø 900

Ø 1200

Ø 1500

Ø 1800

Ø 2200



For more details please download the technical data sheet.



Applications



  • Wood flour
  • Micronised materials
  • Mineral powders
  • Plastic powders


Accessories

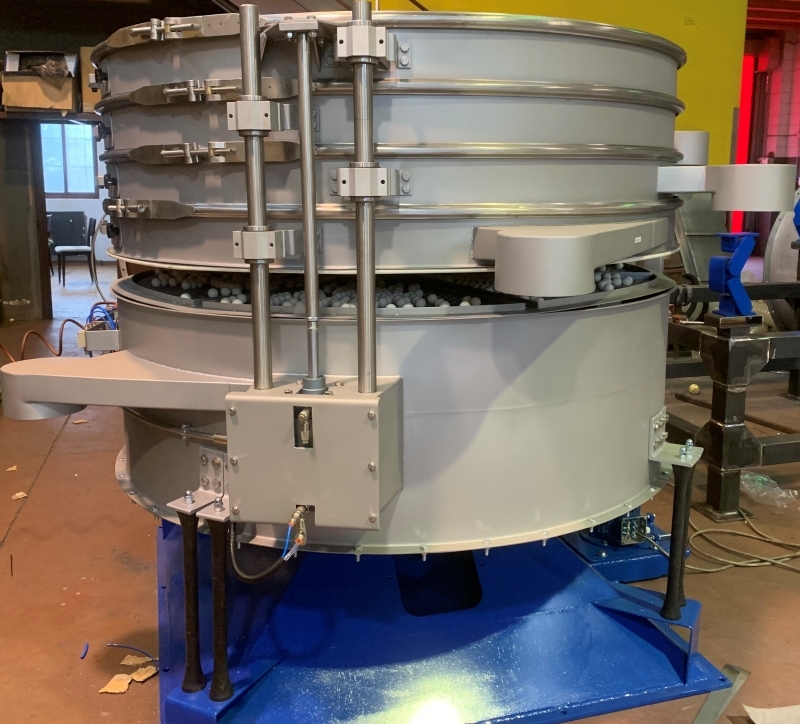

Self-cleaning ball system

It frees the sieving mesh from obstructions

Cover

It is installed to prevent dust dispersion into the environment

Meshes

Opening ranging between 25 microns and 30 mm



Video



Tumbling screen  with a diameter of 1800 and 1200 cm
